GeekVape Aegis Legend 5 Dual-18650 Starter Kit

The GeekVape Aegis Legend 5 Starter Kit provides the main hardware required for a configurable sub-ohm setup: a dual-battery mod, a refillable tank and two replaceable mesh coils. E-liquid and two compatible 18650 batteries must be purchased separately.
The Legend 5 mod offers a broad 5-200W adjustment range and uses the AS Chip 4.0 to manage firing, screen information and device protections. Its 1.08-inch TFT display shows key settings without forcing the user to rely on small indicator lights.
The Z Subohm Tank 5 uses a top-push fill system and top-mounted airflow. The 0.15-ohm coil included in the tank is intended for higher-power operation, while the spare 0.4-ohm coil supports a lower recommended wattage range. Always prime a new coil and begin below its maximum rating before increasing power gradually.
This is not a disposable product. The tank can be refilled, coils can be replaced and the batteries can be removed. That flexibility also means the kit requires routine maintenance, correct coil installation and responsible battery care.
Product Benefits
• Wide 5-200W power range for compatible sub-ohm coils
• Replaceable dual 18650 batteries for extended use
• Fast AS Chip 4.0 response
• Clear 1.08-inch TFT color screen
• Multiple power and temperature-control modes
• IP68-rated rugged body
• A-Lock switch for transport and storage
• Refillable 5.5mL Z Subohm Tank 5
• Top fill and top airflow design
• Two included Z XM mesh coils with different power ranges
How to Set Up the Kit
1. Inspect the mod, tank, glass and both battery wraps before use.
2. Install two matched high-drain 18650 batteries in the correct orientation. Batteries are not included.
3. Confirm that the preinstalled 0.15-ohm coil is fully seated in the base of the tank.
4. Add several drops of e-liquid to the exposed cotton openings of a new coil.
5. Open the top-push fill cap, fill the tank without placing liquid into the center airflow tube and close the cap securely.
6. Allow the filled tank to stand for at least five to ten minutes so the coil can saturate.
7. Attach the tank to the 510 connection without overtightening it.
8. Unlock the device, select an appropriate mode and begin below the coil’s recommended maximum wattage.
9. Increase power gradually while monitoring flavor, heat and coil performance.
Included Coil Guide
• Z0.15 XM coil: 0.15 ohm, 70-85W recommended range, preinstalled
• Z0.4 XM coil: 0.4 ohm, 50-60W recommended range, supplied as a spare
Color Options
• Aurora Rainbow

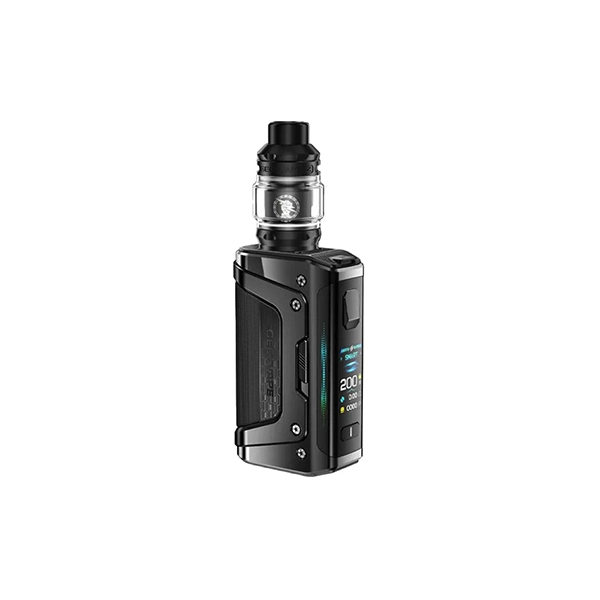

• Carbon Black

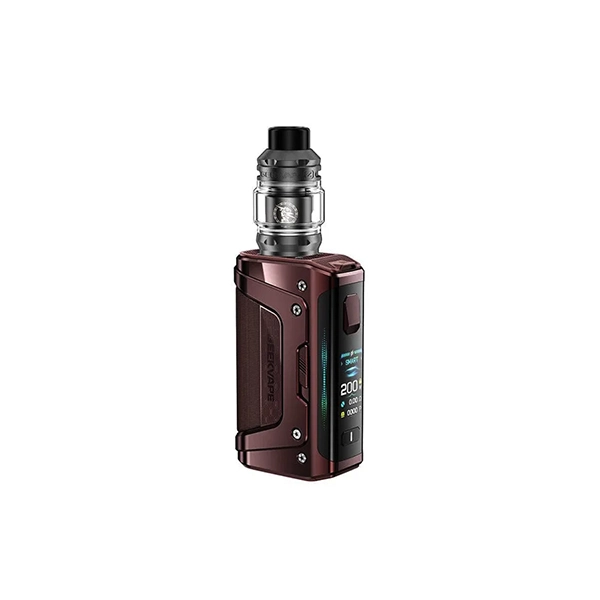

• Earth Brown

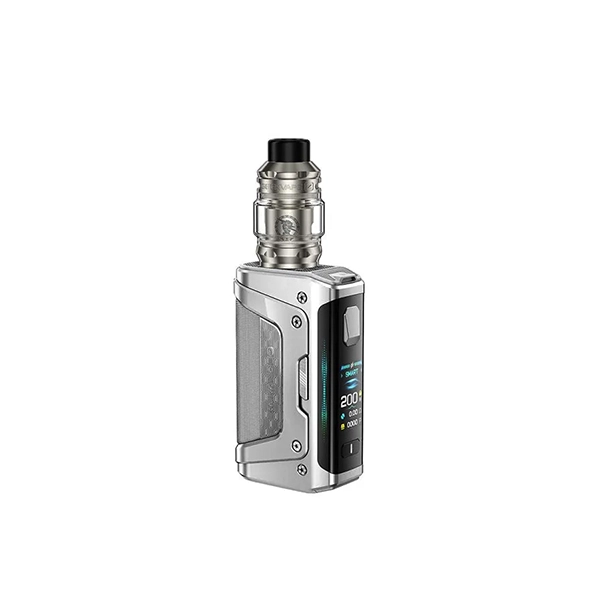

• Frost Silver

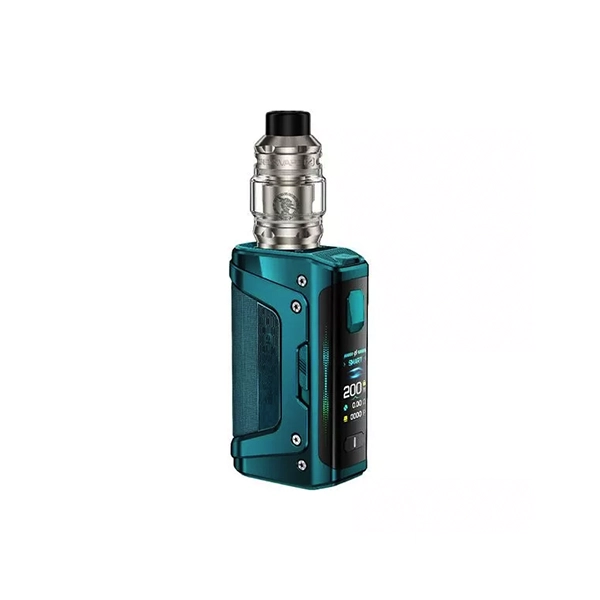

• Glacier Green

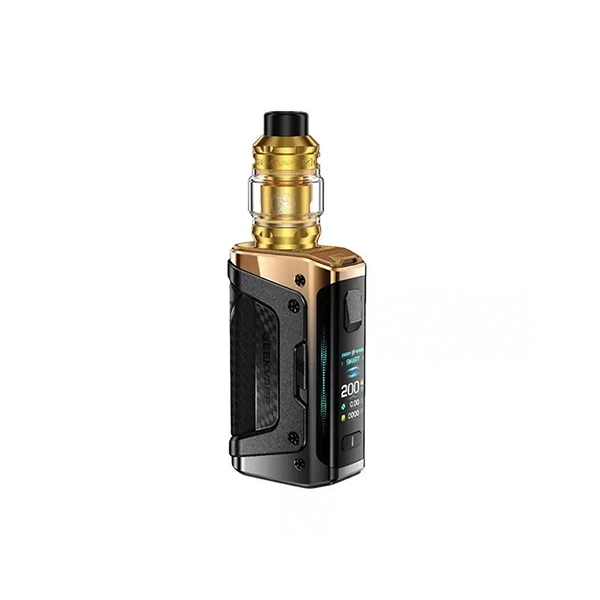

• Racing Gold
• Turbo Red

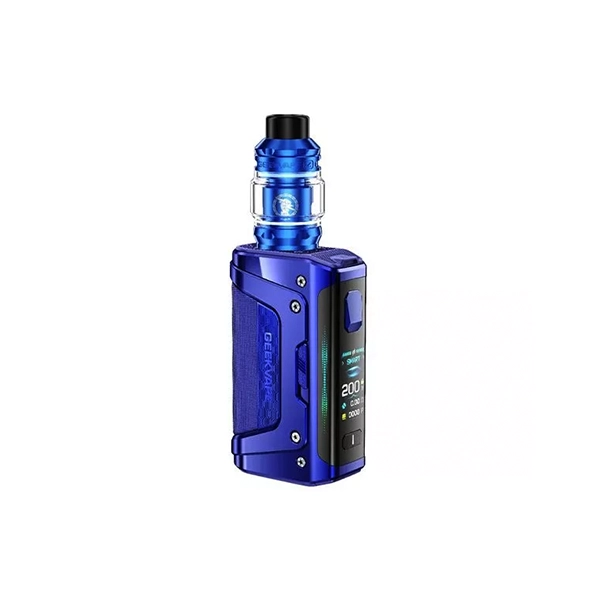

• Twilight Blue
