Freemax Twister 2 Setup, Use and Maintenance Guide
Price range: $45.99 through $55.99
A practical guide to coil installation, priming, tank filling, wattage selection, airflow adjustment, charging, cleaning and transport.
The Freemax Twister 2 is a button-fired, variable-wattage vape pen with an integrated battery and removable Fireluke 4 Tank. Setup requires installing a compatible coil, filling the tank, allowing the wick to saturate and selecting an appropriate power setting before use.
The wattage dial covers 15W through 80W. Begin near the lower end of the operating range printed on the installed coil and increase gradually. The dial also has a fully anticlockwise lock position that disables the firing button.
The standard tank holds 5mL and fills through the lift-and-slide top cap. Its bottom airflow ring can be adjusted after filling. E-liquid is not included.
Setup and Daily Operation
1. Confirm that the device, tank, glass and USB port are undamaged.
2. Unscrew the tank base and install the selected threaded coil securely.
3. Apply a small amount of e-liquid to the visible wick openings of a new coil.
4. Reassemble the tank and confirm that the glass and seals are seated correctly.
5. Lift and slide the top cap to expose the fill port.
6. Fill the tank without adding liquid to the center airflow chimney.
7. Close the cap and allow the new coil to saturate for about 5-10 minutes.
8. Turn the dial away from the lock position and select a low initial wattage.
9. Power the device on with the firing-button sequence stated in the user manual.
10. Hold the firing button while inhaling; release it immediately after the draw.
11. Adjust the bottom airflow ring to the preferred draw.
12. Refill before the tank runs completely dry.
Charging, Cleaning and Storage
Charge through the USB Type-C port with a suitable 5V/1.5A source. Place the device on a dry, stable and heat-resistant surface, keep it visible while charging and disconnect it before use.
Turn the base dial fully anticlockwise before carrying or storing the kit. Avoid pressing the firing button against objects, and do not leave the device in a hot vehicle or direct sunlight.
Clean the tank when changing coils or e-liquid. Keep the 510 connection and USB port dry, replace damaged seals or glass, and stop using any device that leaks, swells, cracks or becomes abnormally hot.

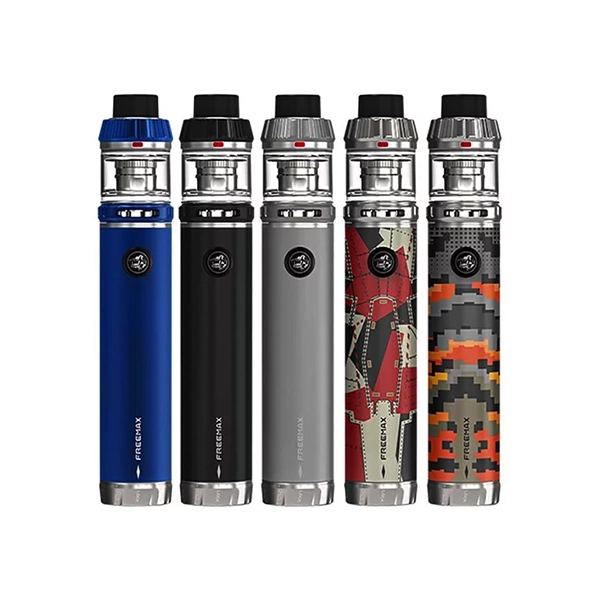

Available Color Options

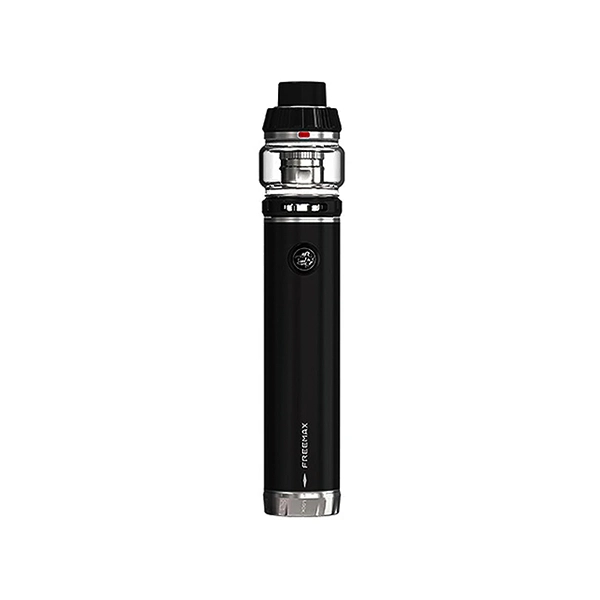

• Black

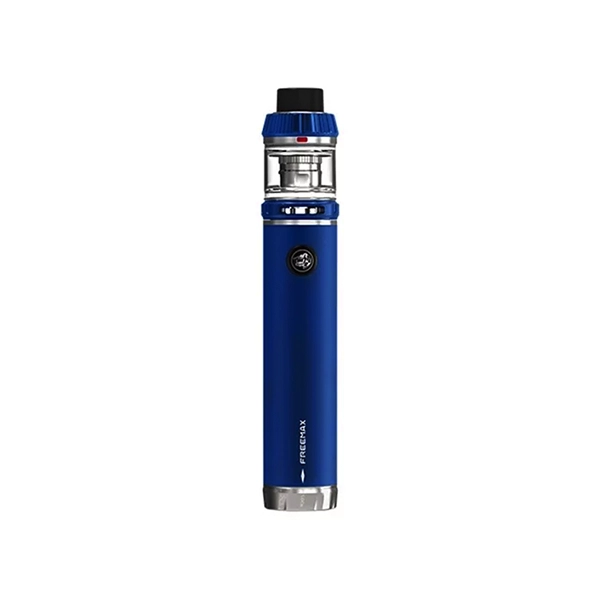

• Blue

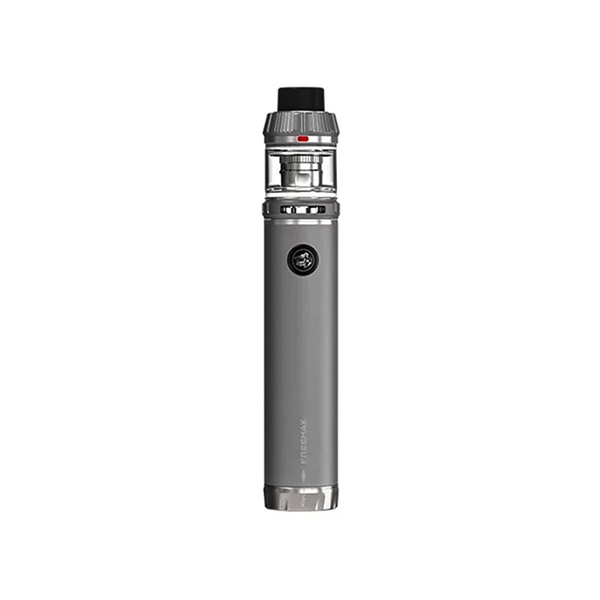

• Silver

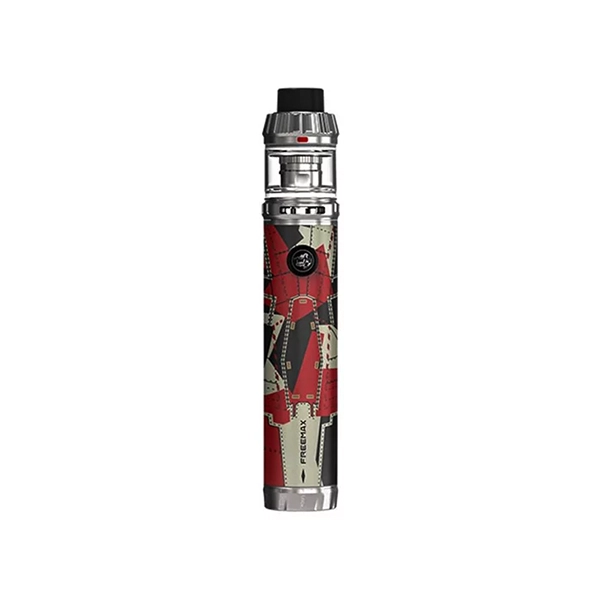

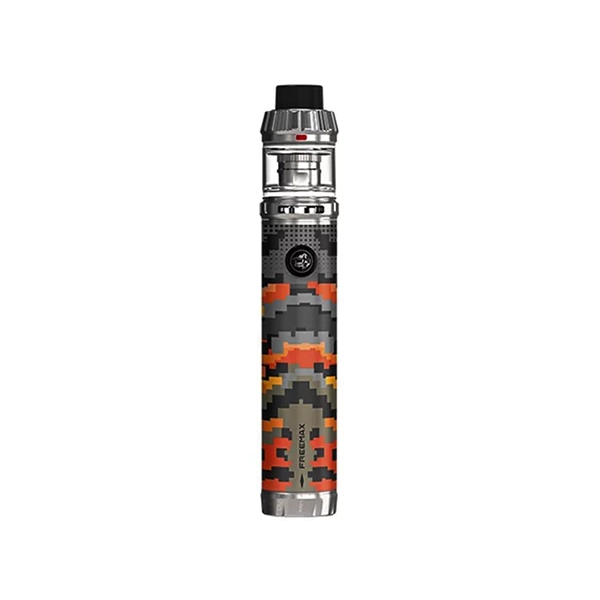

• 3D-Orange
• 3D-Red
| Brand | Freemax |
|---|---|
| Model | Twister 2 80W |
| Product Type | Variable-Wattage Pen-Style Vape Kit |
| Chipset | FM CHIP 2.0 |
| Output | 15-80W Adjustable |
| 15-80W Adjustable | 0.7-7V |
| Input Voltage | 3.2-4.2V |
| Resistance Range | 0.1-3.0Ω |
| Battery | 3000mAh Integrated Rechargeable |
| Charging | USB Type-C, 5V/1.5A |
| Activation | Button-Activated |
| Wattage Control | Bottom Adjustment Dial |
| Device Lock | Fully Anticlockwise Dial Position |
| Mod Connection | 510 Threaded |
| Mod Size | 25mm Diameter × 97mm |
| Tank | Freemax Fireluke 4 |
| Tank Capacity | 5mL Standard/U.S. Edition; 2mL TPD Edition |
| Tank Size | 28mm Diameter × 50.5mm |
| Fill System | Lift-and-Slide Top Fill |
| Airflow | Adjustable Dual-Slot Bottom Airflow |
| Drip Tip | Replaceable 810 |
| Coil Installation | Threaded |
| Included Coils | X1-D Mesh 0.15Ω and 904L X2 Mesh 0.2Ω |
| Heating Technology | FM COILTECH5.0 / Double-D Mesh on X1-D |
| Refillable | Yes |
| E-Liquid Included | No |
| Minimum Age | 21+ |
